Products

A full portfolio of precision cast and forged wear parts — engineered where zero defects is the only option.

Product Lines

Engineered wear parts & castings for every jobsite

A full portfolio of ground engaging tools, attachments, large castings and accessories — precision investment cast and forged where zero defects is the only option.

Ground engaging tools — cutting edges, end bits, teeth and adapters

Ground Engaging Tools

Bucket teeth, adapters, pins and retainers cast for extreme abrasion and impact resistance in mining and quarrying.

  • Bucket Teeth
  • Adapters
  • Pins & Retainers
  • Cutting Edges
Request specs
Excavator bucket attachment

Attachments

Excavator buckets compatible with all major brands up to 80‑ton machines — general purpose, heavy-duty and rock configurations.

  • Excavator Buckets
  • Rock Buckets
  • Rippers
  • Custom Builds
Request specs
Large castings and castlips

Large Castings & Castlips

One-pour ladles up to 28 tons and 15‑ton AOD solutions. Precision investment casting for heavy industrial applications.

  • One‑Pour Ladles ≤28T
  • 15‑Ton AOD
  • Castlips
  • Custom Castings
Request specs
Accessories — pins, shafts, chocky bars and chains

Accessories

Wear plates, side cutters, shrouds and hardware — everything needed to keep your equipment running and productive.

  • Wear Plates
  • Side Cutters
  • Shrouds
  • Hardware
Request specs
Verified Performance

Mechanical properties you can build on

Every GET component is tested and documented. Our published minimums are conservative — real batches consistently exceed them.

01

Traceable materials

100% traceable material certificates for full supply-chain accountability.

02

Factory acceptance testing

3D inspection reports and dimensional verification on every order.

03

Extended wear warranty

12–36 month coverage (conditions apply) backing real field performance.

GET Component
Hardness
Impact (−40℃)
Bucket Teeth
≥ HB 460
≥ 16 J
Bucket Adapter
≥ HB 330
≥ 25 J

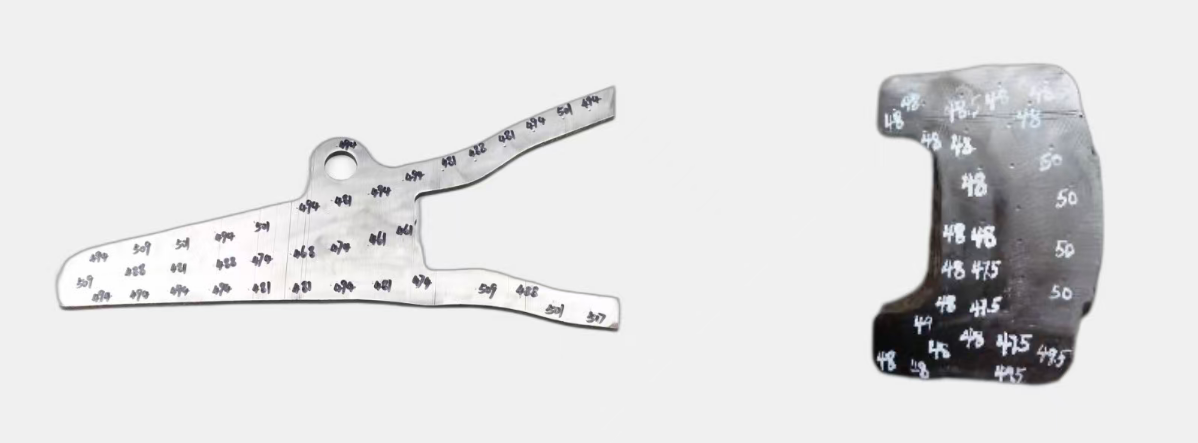

Sectioned Margate adapter and bucket tooth with measured hardness readings marked across the cut face
Cross-section hardness survey

Parts cut and mapped point-by-point across the section — measured on real production parts, not brochure figures.

Adapter sectionHV 468–529
Tooth sectionHRC 47.5–50
Cutting Edges & End Bits

Three steel grades. Pick for the ground you're in.

Published minimums from our material report — hardness, toughness and chemistry for each grade we run.

C80High-carbon steel
HardnessHB 260–300
Tensile (Rm)≥ 1000 N/mm²
Impact, ambient≥ 6 J
Impact, −40℃—
Elongation (A)≥ 3 %
Yield (Rp0.2)≥ 900 N/mm²
Chemical compositionC 0.77–0.85 · Mn 0.5–0.8 · Si 0.17–0.37 · S ≤0.035 · P ≤0.035
30MnBBoron steel
HardnessHB 450–500
Tensile (Rm)≥ 1450 N/mm²
Impact, ambient≥ 25 J
Impact, −40℃≥ 20 J
Elongation (A)≥ 6 %
Yield (Rp0.2)≥ 1150 N/mm²
Chemical compositionC 0.27–0.35 · Mn 1.0–1.50 · Si 0.1–0.45 · S ≤0.035 · P ≤0.035 · Cr 0.25–0.60 · B 0.0008–0.008
16MnManganese steel
HardnessHB 330–370
Tensile (Rm)≥ 1150 N/mm²
Impact, ambient≥ 40 J
Impact, −40℃—
Elongation (A)≥ 12 %
Yield (Rp0.2)≥ 900 N/mm²
Chemical compositionC 0.1–0.24 · Mn 1.0–1.60 · Si 0.1–0.55 · S ≤0.035 · P ≤0.035 · Cr ≤0.035

Values are guaranteed minimums from Margate material reports, tested at ambient unless stated. “—” means the grade is not rated at −40℃. Custom grades available on request.

28TMaximum one‑pour ladle
80TExcavator class supported
−40℃Impact‑tested toughness
24hSame‑day quote response
Get Started

Ready to spec your parts?

Send us your machine, ground conditions and volumes — we respond the same day.

Request a Quote
